7” User Interface R5
User Interface
The Handsfree R5 is a modular, scalable communication solution for use in Emergency Service vehicles.
Modular & Unique R5
- Leading a new generation in mission critical communication technology, the R5 can act as a standalone or integrated system for use in fire engines, police cars, motorcycles, ambulances, and marine vessels, along with coast guard, mountain rescue, and other specialized emergency services.
- Designed, installed, and commissioned by the experts at Handsfree Group, the R5 fixed vehicle device is a leading vehicle communication, safety, and security solution. It is used by a wide range of first response clients including police, ambulance, and fire services. The R5 system features intuitive components such as adjustable, ergonomic push to talk controls and reliable connectivity to enable users to communicate with other vehicles and controllers quickly and effortlessly.
- The highly adaptable R5 solution can be utilised effectively by emergency fire services, with features including a specialised pump bay voice terminal, providing superior communication technology from key vehicle areas to enable smooth and efficient mission control. The versatile R5 Core Unit -which securely houses the systems CPU, connections, and interfaces – provides a Wi-Fi hot spot, LTE, and GPS module, all of which continue to operate effectively at high vehicle speeds, ensuring the relay or receipt of critical information during an emergency.
Specifications
R5 7” User Interface Panel
- Larger display for ease of use
- Programmable hot keys, siren, and lighting control, talk group select, operational status, messages (OSM)
- Rugged, wear and tear resistant and fully functional in harsh environments
- 1.8mm Gorilla Glass
- Dedicated buttons for PTT & other standard controls
- Sunlight readable display
- Emergency, volume, brightness hard key controls
- AMPS mounting solution.
Control Unit
The R5 Core Unit is the beating heart of the R5 system. It provides the Android processing power, LTE connectivity, audio processing and an extensive range of IO interfaces for vehicle and 3rd party device connectivity.
R5 Specialist
The R5 Core Unit houses the systems CPU, Wireless Connection, and System interfaces. The versatile functionality of the R5 Core Unit includes CAN, RS232, 2 x USB, GPIO, and 2 x Ethernet interfaces providing downstream connection to vehicle-specific accessories such as Kodiak PTT devices. When paired with the R5 User Interface, the R5 Core Unit functions as a WIFI hot spot, LTE, and GPS module, which continues to operate effectively at high vehicle speeds. The R5 Core Unit utilises a Qualcomm chipset and runs the Android 10 operating system, providing Airware integration and ensuring the system is fully compatible with the latest end-user applications.
R5 Adaptable
The R5 User Interface has been purpose-built to be rugged, ergonomic, and intuitive, providing longevity in harsh environments. The R5 User Interface features 5 Programmable buttons allowing the system to be calibrated to end-user requirements, whilst dedicated buttons perform PTT and other standard controls.
The large 5.7” LCD Display is sunlight- readable delivering functionality in changing light conditions. Finally, the rugged design is built to an IP67 standard, featuring a 1.8mm Gorilla Glass screen and ruggedised casing, offering protection against wear and tear.
Specifications
R5 Core Unit
- Mobile Network Technology LTE
- Kodiak PPT
- Voice Calling
- GPS technology
- Multiple or Second Screen
- In Vehicle high speed Wi-Fi hot spot
- Bluetooth connected devices.
- Direct Mode (Device to Device Airwave Integration)
- CAN
- Ethernet x 2
- RS232
- USB 3.0
- USB 2.0 x 2
- GPIO x 8
R5 Speaker
Loudspeaker optimised for interference-free voice transmission. It seemlessly integrates into the system that comprises the complete R5 emergency services network solution. This speaker comes as part of the base kit for Fire Appliances, along with the R5 Fist Mic.
Optimised R5
- Rugged plastic housing
- Frequency range optimized for radio communication.
- Very high power – 10 Watt
- Solid retaining bracket made of metal.
Specifications
- Housing: PVC plastic, black
- Dimensions: Height 66 mm, width 110 mm,
- Depth 55 mm, height with retaining bracket 77 mm
- Weight: 340 g (12 oz)
- Storage temperature: -25 °C to +70 °C (-13 °F to +158 °F)
- Operating temperature: -25 °C to +70 °C (-13 °F to +158 °F)
- Connection 2-wire cable; cable length: 3.00 m, with
- Over Moulded Molex plug Connection
- Frequency range 300 Hz to 5 kHz at -10 dB
- Effective sound pressure 84 dB/1 W/1 m ± 2 dB
- Impedance 4 Ohm ± 15 % at 1 kHz
- Output norm. 10 W / max. 12 W
R5 Fistmic
The R5 Fist Mic, or remote speaker microphone – designed with an amplifier and three buttons. This accessory is rugged and versatile, with PTT and an emergency button for ease of use. These fist microphones are an exceptional addition to the R5 Emergency Services Network Solution.
Integrated R5
- Electret microphone capsule, integrated
- Class-D amplifier
- Solid plastic housing
- Protection class IP67
- PTT button, emergency button and one button for toggling the volume level
- LED for displaying the selected volume level and the emergency function (detachable)
- 360° rotating clip
- Headphone jack (3.5 mm jack with thread)
Specifications
- Dimensions: Height 90 mm, width 66 mm, depth 31 mm
- Weight: 200 g / 7.05 oz
- Connection: Spiral cable, extension length max. 2.5 m
- Storage Temperature: -30 °C to +75 °C / -22 °F to +167 °F
- Operating Temperature: -25 °C to +70 °C / -13 °F to +158 °F
- Scope of delivery: Remote speaker microphone ML 50 with 360° rotating clip and spiral cable with plug for TPH700
- Microphone (electret)
- Operating voltage (DC): 3.3 V
- Frequency range: 150 Hz to 10 kHz at -10 dB
- Sensitivity: 5 mV/Pa (-46 dBV/Pa ± 3 dB)
- Impedance: 1 kΩ ± 20 % at 1 kHz (balanced)
- Directivity: Omnidirectional Speaker
- Frequency range: 650 Hz to 7 kHz at -10 dB
- Effective sound pressure: 81 dB/1 W/1 m ± 3 dB
- Impedance 8 Ω ± 15 % at 1 kHz
- Maximum output: 2 W (max. 2,5 W)
- Amplifier input: 600 Ω balanced
- Amplifier output: 0.6 W

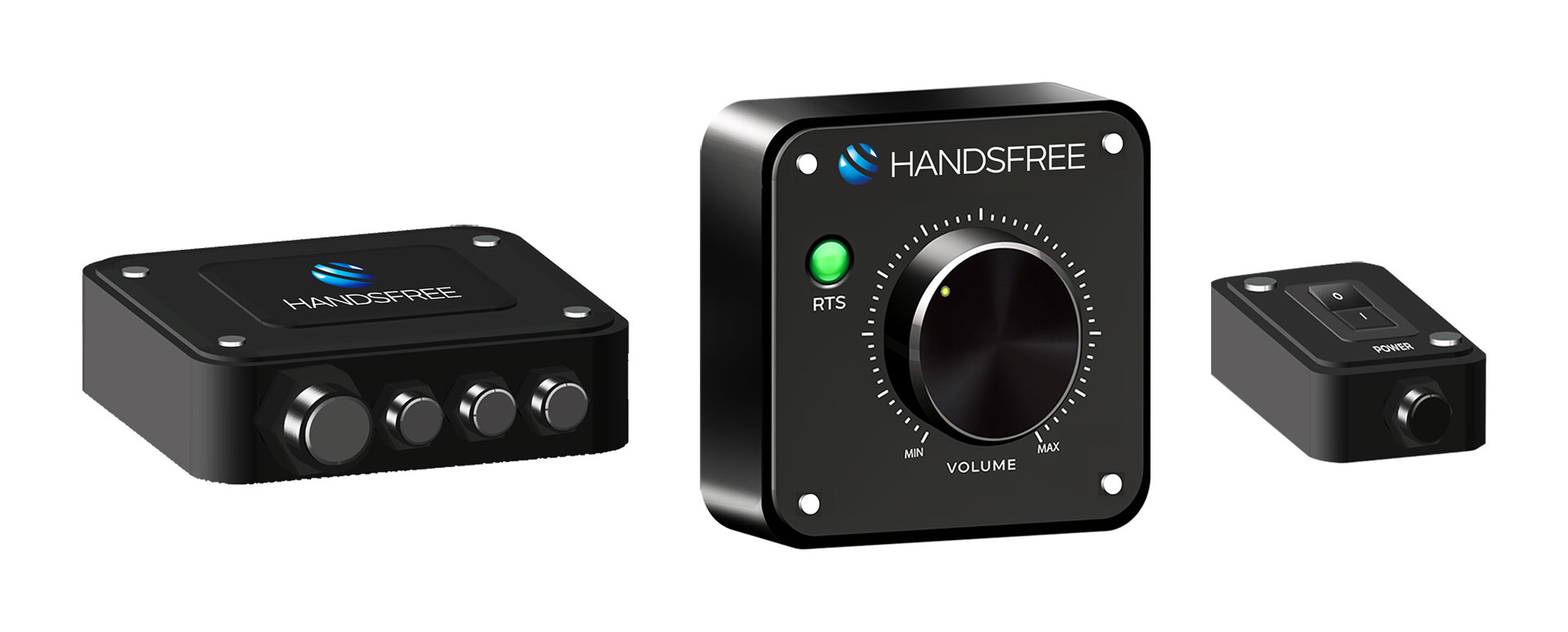

R5 Pump Bay Voice Terminal
R5 Pump Bay Voice Terminals can be installed in the pump bay of a fire engine, providing an additional control point for Fire and Rescue teams. It is rugged and simple to use, with an intuitive interface, and robust and durable for extreme environmental conditions and rough handling. With its high acoustic quality, the R5 Pump Bay Voice Terminal seamlessly integrates into the system that comprises the complete R5 emergency services network solution.
Versatile R5
- Enables communication at key areas of vehicle
- Integrates with existing systems
- Durable cables
- IP67 Enclosure Box with RTS indicator
- IP54 Interface Box in Cab
- IP54 Control Switch in Cab
- Fist Mic included with PBVT
- 24 W Loud Speaker Included with PBVT
Specifications
- Pump Bay Voice Terminals can be installed into the pump bay of a fire engine, providing an additional control point for Fire and Rescue teams.
- The R5 PBVT is a fully-integrated solution that is ideal because it will work with existing kit you have installed or can fully replace as part of a new installation.
- Pump Bay Voice Terminal Control Switch and Interface Box IP54 are situated in the cab area of the fire engine.
- This links to the enclosure box based in the pump bay area at the rear where it’s configured with a IP67 24 Watt Load Speaker and IP67 PTT Fist Microphone which come as part of the complete kit.
- There is an optional upgrade to the PTT device with IP67 HP4 Telephone Handset, this has excellent acoustics, colour display additional programmable buttons along with the PTT button.
R5 Speaker
Loudspeaker optimised for interference-free voice transmission. It seemlessly integrates into the system that comprises the complete R5 emergency services network solution.
Optimised R5
- Rugged flame-resistant plastic housing
- Very compact design
- High sound output
- Protection class IP65
- Salt fog resistant
- Horn loudspeaker with cable
- Customized plugs
- 8 Ohm and 16 Ohm version
- 25W Output
- For mobile and fixed radio systems
Specifications
- Housing: PVC plastic, black
- Dimensions: Height 66 mm, width 110 mm, depth 55 mm, height with retaining bracket 77 mm
- Weight: 340 g (12 oz)
- Storage temperature: -25 °C to +70 °C (-13 °F to +158 °F)
- Operating temperature: -25 °C to +70 °C (-13 °F to +158 °F)
- Connection 2-wire cable; cable length: 3.00 m, with
- Over Moulded Molex plug Connection
- Frequency range 300 Hz to 5 kHz at -10 dB
- Effective sound pressure 84 dB/1 W/1 m ± 2 dB
- Impedance 4 Ohm ± 15 % at 1 kHz
- Output norm. 10 W / max. 12 W
R5 Rugged Handset
The HA57 Programmable R5 Handset is the perfect
choice to fit out a vehicle with a handsfree kit that satisfies the highest standards.
Programmable R5
- Well proven design
- Large operating voltage range (5 V to 35 V)
- 2.4’’ colour graphic display with 240×320 pixel
- Adjustment of display brightness
- Full numeric keypad
- PTT button on the side
- Emergency Button Facility
- Dynamic ear capsule
- Electret microphone capsule with noise reduction
- Wear-free hook function
Specifications
- IP67 (except for handset connector)
- Shock proofed housing
- Excellent Acoustics
- Usable in direct sunlight
- Hands free operation and private call functionality
- Adjustable display and key illumination (+day / night mode)
- Headphone jack (Mic + Speaker)
- Replaceable Cable
- PTT button
- Programmable button (PB)
- Status and notification LED
- Transflective color display
- Fully supported within the R5 Fixed Vehicle System
